SPECIFICATIONS

  • Size: fractional ounce to imperial gallon
  • Type: round or square bottle, bottles with outsert or topsert, carton, fifth panel carton
  • Lanes: 1, 2, or 3 lanes of operation
  • Speed: 150-300 containers per minute
  • Film Widths: 17", 26" or 35"
  • Max Product Height: 11"
  • Electrical: 120/240/480 VAC, 1 or 3 Phase, 50/60 Hz, 30 Amps
  • Pneumatic: 80 PSIG, 8-13 SCFM, 3/8" air line

Additional specifications available.

HIGHLIGHTS

  • Compact footprint
  • Machine design can support topserts and sideserts, vertical stacking, 90° container orientation
  • Scaled adjustments for rapid, repeatable changeovers
  • High overall equipment efficiency (OEE)
  • Low Total Cost of Ownership (TCO)
  • PMMI-Certified Training available*

* Optional

UPGRADES

  • Broken film detection
  • High speed upgrade
  • Toolless change parts

Upgrades subject to machine specifications.

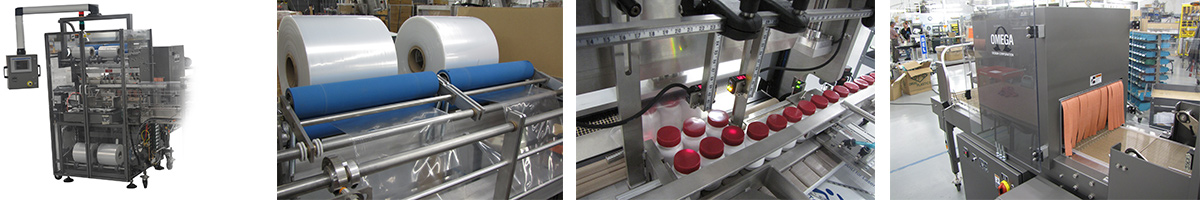

Classic Shrinkbundler

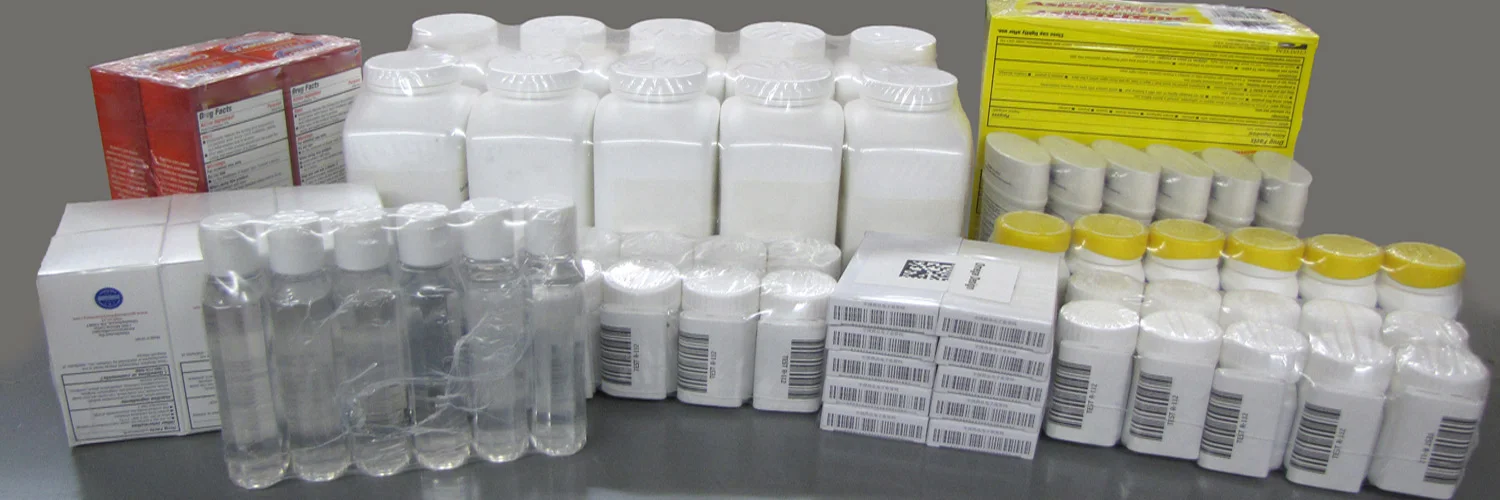

The Classic Shrinkbundler collates, unitizes, wraps and safeguards a wide array of packaging products. With user friendly design and state-of-the-art electronics, this highly versatile bundling system automatically wraps bottles or cartons in a clear polyethylene film, which protects against product marring and allows for instant product identification.



MMX Shrinkbundler



The model MMX premium Shrinkbundler is servo-controlled, unlike the Classic Shrinkbundler which uses pneumatic controls. This means that the MMX will have better component speed control, consume 80% less air, and there will be coordinated motion between the pusher and seal bar resulting in improved overall performance.

  • Servo Controls - absolute position data for precise control and feedback; coordinated motion (when applicable); faster speeds; fewer sensors
  • Enhanced Guards Package - Interlocked guards; full-length doors
  • Sound Abatement Package - Fully enclosed frame; thick polycarbonate panels and doors; foam-rubber bulb seal gaskets; enhanced door latches for a tighter gasket seal; acoustic covers for all air nozzles; enclosed valve pack with gauge window
  • Stainless Steel Construction
  • Ergonomic Design - For cleaning, maintenance and replacing film rolls
